How Thick Is Resin Flooring

24 July 2023

A common issue with epoxy floors is how thick you need them to be. Epoxy floor thickness might not be your first thought when installing an epoxy floor, but it impacts cost, effectiveness, and appearance.

At Trusty Tread, we are epoxy floor specialists, and we'll help you manage everything you need to know for epoxy floor coatings and the right level of epoxy floor thickness in your home.

Importance Of Thickness In Relation To Durability And Longevity

The level of epoxy floor density plays a crucial role in determining its overall durability and longevity. Thicker coatings or screeds provide enhanced protection to the underlying substrate, making the epoxy floor more resistant to wear and tear caused by foot traffic, heavy equipment, and other physical impacts.

A thicker epoxy flooring coating can withstand greater levels of stress and abrasion, making it ideal for high-traffic areas in residential and commercial spaces. It reduces the risk of cracks, chips, and other damages, ensuring the epoxy floor maintains its pristine appearance for a longer period.

Furthermore, a thicker epoxy flooring coating generally offers better chemical resistance, which is essential in areas exposed to spills and chemicals. This ensures the floor remains unaffected by common household chemicals or industrial substances, extending its lifespan.

How Thickness Affects Various Properties Of Epoxy Floors

The density of resin flooring directly influences several important properties of epoxy floors, including:

Impact Resistance: Thicker epoxy floors have a higher ability to absorb and disperse impact energy, reducing the risk of surface damage from dropped objects or heavy impacts.

Load-Bearing Capacity: The thicker the epoxy floor coating, the better it can handle heavy loads without sustaining structural damage or deformation.

Flexibility And Cracking: The right epoxy floor thickness ensures sufficient flexibility to accommodate minor substrate movements without cracking or delamination.

Slip Resistance: While an epoxy floor inherently provides good slip resistance, the density can affect the level of texture and grip, making it an important consideration for safety in wet or oily conditions.

Sound Dampening: Thicker resin flooring can contribute to noise reduction, particularly in multi-level buildings.

Industry Standards And Recommended Thickness Guidelines For Resin Floors

The epoxy floor industry follows specific standards and guidelines for determining the appropriate density for different applications. While these guidelines can vary based on the type of resin flooring and the intended use, here are some general recommendations:

Thin-Film Resin Coatings: Typically range from 20 to 50 microns, suitable for light-duty applications, and decorative purposes. They are often used to enhance the appearance of existing floors.

Self-Levelling Resins: Range from 1.5 to 3 millimetres in density, offering excellent levelling properties and suitability for moderate traffic areas.

Resin Screeds: Usually applied at a density of 4 to 6 millimetres, providing increased durability and chemical resistance, making them ideal for industrial and commercial settings.

Heavy-Duty Resin Flooring: Applied at thicknesses exceeding 6 millimetres, designed to withstand extreme conditions, heavy machinery, and aggressive chemical exposure.

Adhering to industry standards and recommended guidelines ensure the epoxy floor system performs optimally and delivers the expected benefits in terms of durability and longevity.

Factors Affecting Epoxy Resin Floor Thickness

 There are many factors impacting the ideal density of epoxy floor coatings, including:

Foot Traffic And Usage: Choosing The Right Density For High-Traffic Areas

The level of people using the floor and the intensity of usage in a particular area are crucial factors to consider when determining the appropriate density for epoxy floors. Areas with heavy traffic, such as entryways, corridors, and commercial spaces, require thicker coatings or screeds to withstand constant wear and tear.

Thicker flooring systems provide greater resistance to abrasion and impact, ensuring the floor maintains its integrity and appearance over time. In contrast, low-traffic areas may benefit from thinner floor coatings, which are more cost-effective and suitable for spaces where durability requirements are not as high. Striking the right balance between durability and cost is essential when choosing the right epoxy floor coating for various traffic conditions.

Substrate Conditions: Adapting Density To The Underlying Surface

The condition of the underlying concrete or substrate significantly influences the choice of epoxy floor coating density. Uneven or damaged substrates may require thicker resin screeds to level the surface and provide a uniform, seamless finish. A more substantial coating will also help to reinforce weaker substrates and prevent cracks or damages from transferring through the epoxy resin floor layer.

On the other hand, when the substrate is in good condition and free from irregularities, thinner resin coatings may be suitable, especially for decorative purposes or light-duty applications. Proper preparation and assessment of the epoxy resin floor are essential to determine the appropriate density that ensures the epoxy resin floor adheres well and performs optimally.

Environmental Factors: Considering Temperature And Humidity Effects

Environmental conditions, such as temperature and humidity, can impact the application and performance of an epoxy floor coating. In colder environments, thicker resin coatings may be preferred to provide additional thermal insulation and prevent potential cracking due to temperature fluctuations.

Conversely, in hot and humid climates, thinner epoxy resin floor coatings or self-levelling resins may be chosen to accommodate flooring expansion and contraction caused by temperature changes. The right density selection takes into account the specific environmental conditions of the location to ensure the epoxy resin floor remains stable and durable over time.

For more learnings, you can check out our post "Are Resin Floors Durable".

Specific Room Requirements: Tailoring Thickness For Different Rooms (Kitchens, Bathrooms, Living Areas)

Different rooms in a home have varying requirements, which should be considered when choosing the density of epoxy floor coatings.

Kitchens: Kitchens are exposed to spills, stains, and heavy traffic. Therefore, a thicker epoxy resin flooring system is recommended to provide excellent chemical resistance and withstand the demands of a busy kitchen environment.

Commercial kitchens, with regular foot traffic and food preparation areas, might need something more robust, especially with more heavy objects. As a general rule, all kitchens benefit from easily cleaned surfaces, although there are different factors to consider.

Bathrooms: Bathrooms require a balance between moisture resistance and slip resistance. Depending on the type of epoxy resin flooring used, a moderate density may be suitable to ensure a safe and hygienic bathroom environment.

Living Areas: In living rooms and bedrooms, with light foot traffic, a thinner epoxy coating may be sufficient for decorative purposes without compromising on quality.

By tailoring the density of the epoxy coating to the specific requirements of each room, homeowners can achieve an ideal balance between functionality, aesthetics, and performance throughout their living spaces.

Types Of Epoxy Floor Coatings And Relative Thickness

 There are different types of thickness for an epoxy resin floor, each suitable for different needs and outcomes

Thin-Film Resin Coatings: Characteristics And Suitable Applications

Thin-film resin coatings are characterised by their minimal density, typically ranging from 20 to 50 microns. This type of epoxy resin floor offers a smooth and glossy finish, making an epoxy coating an excellent choice for decorative purposes and enhancing the appearance of existing floors.

They are often applied as a topcoat over concrete or other resin flooring systems to provide an additional layer of protection and a polished look.

Suitable Applications For This Flooring System

Residential Interiors: Thin-film coatings can add a touch of elegance to living rooms, bedrooms, and other low-traffic areas.

Retail And Commercial Spaces: Ideal for shops, boutiques, and showrooms where a visually appealing finish is desired.

Light-Duty Industrial Settings: In areas with minimal foot traffic and no exposure to heavy machinery or chemicals, thin-film coatings may be used to improve the aesthetics.

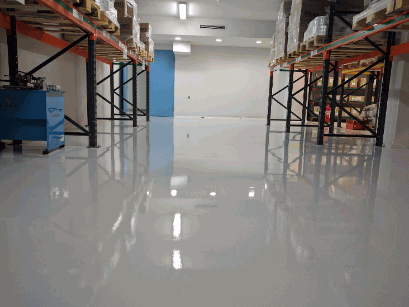

Self-Levelling Resins: Understanding Thickness Variations And Benefits

Self-levelling resins are designed to flow and settle into a level, seamless surface, resulting in a thickness typically ranging from 1.5 to 3 millimetres. This type of epoxy coating is valued for its ability to create a smooth, even surface without the need for extensive manual levelling. Self-levelling resins offer several benefits, including quick installation and excellent resistance to wear.

Benefits Of This Flooring System

Rapid Installation: The self-levelling property simplifies and speeds up the application process.

Levelling Uneven Substrates: Self-levelling resins can correct minor imperfections in the layer, saving time and effort on surface preparation.

Aesthetics And Hygiene: The seamless finish enhances the visual appeal and makes cleaning and maintenance easier.

If you want to know how to clean resin floors, you can check out our post.

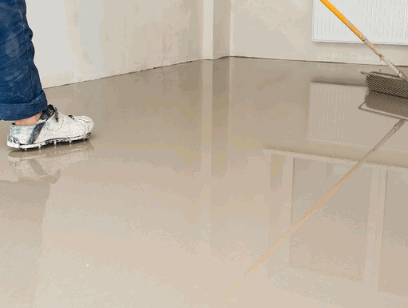

Resin Screeds: Advantages And Typical Thickness Ranges

Resin screeds are thicker epoxy floor coatings, usually applied at a density of 4 to 6 millimetres. These flooring solutions consist of aggregates blended with resin, resulting in a robust and durable surface.


High Durability: Resin screeds can withstand heavy foot traffic, machinery, and harsh substances.

Chemical Resistance: Suitable for areas where chemical spills or exposure is common, such as manufacturing facilities and laboratories.

Thickness Customisation: Can be tailored to achieve specific performance requirements.

Heavy-Duty Epoxy Floor Coatings: When And Where To Use Thicker Applications

Heavy-duty epoxy resin floors are characterised by their density, often exceeding 6 millimetres, and are designed to endure the most demanding environments, including concrete floors. These systems are composed of multiple layers, including primers, body coats, and topcoats, providing exceptional strength and protection.

When And Where To Use

Industrial Facilities: Heavy-duty epoxy floor coatings are indispensable in manufacturing plants, warehouses, and factories where heavy machinery and equipment operate.

Chemical Processing Areas: Suitable for environments exposed to corrosive chemicals and acids.

Aerospace And Automotive Sectors: In spaces that require resistance to chemicals, oils, and fuel, heavy-duty epoxy flooring is an ideal choice.

Installation Techniques And Thickness Control For An Epoxy Floor Coating

The success of an epoxy resin floor installation and achieving the desired density relies heavily on thorough preparation and priming of the layer. Proper preparation ensures a clean, smooth, and well-bonded surface, essential for accurate density application and long-term performance of your epoxy resin floor.

Surface Cleaning: The layer must be free from dirt, dust, grease, and any contaminants that could hinder proper adhesion.

Surface Repairs: Address any cracks, holes, or unevenness in the surface to create a level surface for the resin application.

Priming: Applying a suitable primer helps improve adhesion and prevents air bubbles from forming during the epoxy floor application.

Moisture Testing: Conduct moisture tests to determine if the substrate is dry enough to receive the epoxy flooring, as excessive moisture can negatively impact the bonding and density control.

Troubleshooting Common Thickness-Related Installation Issues

Despite careful preparation and execution, some issues may arise during an epoxy resin flooring installation that affects thickness control. Here are common problems and their solutions:

Uneven Thickness: If some areas have a different density than intended, corrections can be made by adding or removing resin as needed before it cures.

Bubbles Or Pinholes: Air bubbles or pinholes may occur during the application. To avoid this, use the appropriate roller techniques to release trapped air and achieve a smoother surface.

Thickness Variation: Improper mixing or inconsistent application techniques can result in thickness variations. Check for proper mixing ratios and maintain a steady application process.

Premature Curing: In hot or dry conditions, the resin may start curing faster, making it difficult to achieve the desired density. Work in smaller sections to ensure proper application before curing.

Excessive Thickness: Applying resin excessively thick can lead to extended curing times and potential issues with the floor's integrity.

Take Time With A Floor Coating

As with most things, a good level of surface preparation is essential in getting the best results from epoxy coatings, including managing the concrete underneath. Whether at home or with industrial flooring, check your concrete floors and garage floor before applying epoxy coatings.

Epoxy Coating System And Underfloor Heating

Underfloor heating systems have become increasingly popular as an efficient and comfortable way to heat homes and commercial spaces. When considering epoxy flooring in conjunction with underfloor heating, it's essential to understand how the thickness of the resin system can impact the performance and efficiency of the heating system.

For more information, we recommend checking out our post titled "Can You Have Underfloor Heating With Resin Floors".

Ideal Thickness For Efficient Heat Transfer And Insulation

The ideal density of epoxy floor coatings for underfloor heating depends on the type of heating system and its intended use. Here are some considerations:

Electric Underfloor Heating: For electric systems, thin-film resin coatings with a thickness of around 20 to 50 microns are recommended. The thin layer ensures that heat from the cables or mats can penetrate through the resin efficiently, providing quick and uniform warmth to the room.

Water-Based Underfloor Heating: Resin screeds are preferred for use with water-based underfloor heating. The typical density of resin screeds for this application ranges from 4 to 6 millimetres. This thickness allows the resin to act as an effective thermal mass, absorbing and retaining heat from the water pipes and radiating it evenly throughout the room.

Balancing Heat Transfer And Insulation: Achieving the right balance between heat transfer efficiency and insulation is crucial for underfloor heating systems. Thicker resin systems may take longer to warm up, but they provide better insulation, retaining heat for more extended periods and reducing heat loss to the substrate below.

 How Thickness Impacts The Ease Of Maintenance

The density of epoxy floor coatings significantly impacts maintenance as they are hard-wearing. Thicker systems offer enhanced durability against wear, scratches, stain resistance, and impacts, reducing maintenance needs.

In industrial or commercial settings with chemicals, thicker epoxy flooring provides better resistance, minimising repairs. Thicker epoxy floor coatings hide substrate imperfections, leading to a smoother surface that is easier to clean.

Budget Considerations

Choosing the right epoxy floor thickness involves finding a balance between cost and benefits. Thicker systems offer improved durability and longevity but may come with higher upfront expenses. Factors like traffic, expected lifespan, and maintenance costs influence the decision, with the following epoxy flooring elements all worth considering:

Thin-Film Coatings: Most budget-friendly, suitable for decorative purposes, but less durable.

Self-Levelling Resins: Cost-effective option with moderate density, ideal for moderate foot traffic areas.

Resin Screeds: Balances durability and cost-effectiveness, and provides chemical resistance.

Heavy-Duty Flooring: Higher upfront cost but excels in demanding environments, leading to long-term savings through reduced maintenance and replacements.

Thicker systems may require less frequent maintenance, resulting in cost savings over time. Considering specific space requirements and consulting with professionals can help make informed budget-conscious decisions.

At Trusty Tread, we are specialists in epoxy floor coatings, and we want you to feel confident when you install new epoxy flooring. Please feel free to get in touch with any resin floor questions, and we'll be happy to help.
